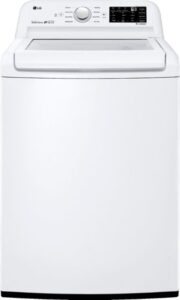

LG Washer WT7100CW

Summary

The LG WT7100CW Washing Machine tech sheet provides detailed diagnostic guides and troubleshooting procedures essential for appliance technicians. This manual covers critical areas, including diagnostic steps for common error codes such as IE, OE, dE, and LE. Technicians are advised to verify valve operations, check for clogged filters, and ensure proper connections for both valves and pumps. The document emphasizes the importance of using proper ESD (ElectroStatic Discharge) and grounding precautions during diagnostics and repairs to prevent damage to sensitive electronic components.

The tech sheet also outlines essential maintenance procedures like checking and replacing the inlet water supply hose every five years and ensuring the drain hose is properly installed to prevent flooding. It includes detailed disassembly instructions for components such as the noise filter, power cord, inlet valve, pressure switch, and dispenser housing. For effective troubleshooting, the manual provides wiring diagrams and detailed steps for testing and replacing key parts like the pump motor assembly, inlet valve assembly, and the PCB (Printed Circuit Board).

Technicians are provided with guidance on resolving common washing problems, such as poor soil removal, blue stains, and fabric damage. The manual advises on the proper use of detergents, fabric softeners, and bleach to avoid residues and ensure optimal washing performance. Additionally, it includes specific instructions for cleaning the inside of the washer, handling frozen components, and conducting test runs without water to verify repairs. The thorough coverage of both routine maintenance and complex repairs makes this manual an indispensable resource for maintaining and servicing the LG WT7100CW Washing Machine.
