Summary

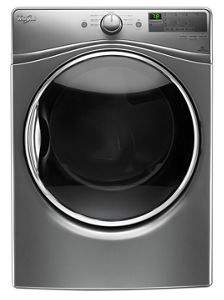

The service tech sheet for the Whirlpool dryer, Model WED85HEFC1, provides essential diagnostic guides and troubleshooting procedures for appliance technicians. The diagnostic steps start with the Service Diagnostic Mode, which can be activated by pressing and releasing three buttons in sequence within 8 seconds. Once activated, technicians can access the system’s fault/error codes. Critical error codes, such as F1E1, which indicates a Cycle Control Unit (CCU) problem, require technicians to verify all connections to and from the CCU and perform a CCU Power Check.
Troubleshooting focuses on testing system components, such as thermistors, moisture sensor, and the motor circuit. For instance, F3E1 signals an open exhaust thermistor, and technicians are advised to perform resistance checks at key points on the CCU to confirm the integrity of the thermistor circuit. The tech sheet provides detailed procedures for measuring the resistance of both inlet and outlet thermistors to ensure they are functioning correctly under various temperature conditions.
Key maintenance and repair procedures also include testing the motor circuit, checking the door switch for proper operation, and verifying airflow. For no-heat complaints, the tech sheet directs technicians to inspect heating elements, thermal fuses, and the high-limit thermostat for continuity. For gas dryers, it provides additional steps for testing the gas valve, flame sensor, and ignitor to diagnose potential gas flow issues. These procedures ensure comprehensive coverage of dryer systems, allowing for accurate identification and correction of faults.
